New 3HT2 300m Water Survey Equipment Underground Water Finder Detector
Product Description
Developed jointly with Guilin Hydrogeological Survey Institute, based on more than 40 years of technical accumulation and exploration, the water finder has realized the functions of complex data calculation, automatic chart generation, cloud storage, and online communication with expert consultants through mobile phones or tablets, providing users with intelligent and convenient water finder solutions. This device realizes the automation and visualization of data processing, significantly improving the efficiency and accuracy of exploration.
Technical Parameters
| Model | 3H | 3HT2 | 3HT3 | 8HT2 | 8HT3 |
| Adjustable depth(m) | 300 | 800 |
| Depth interval | 5/10/20(m) |
| Battery power consumption | 7.4V2600mAH lithium battery, power consumption is about 140mA |
| Connection method | WIFI |
| MN electrode | 100*95*30mm L-shaped alloy electrode 4 pcs |
| The main function | Optional start and end depth range, adjustable depth interval, 2D/3D automatic drawing, AI automatic analysis, online/offline
measurement mode |
| TT electromagnetic induction coil (mm/w) | / | 300/4 | 300/4 | 450/8 | 550/8 |
| TT electromagnetic induction core (KmH/m) | / | 80 | 100 | 100 | 120 |
| working environment | Can be inserted into the ground | any ground |
| Frequency range (HZ) | 1-8K |
| Measurement mode | MN | MN/TT |
| Resolution | 0.1mV±5% | 0.01mV±1% |
| Sampling time (seconds) | 14-420 | 14-420 | 14-700 | 14-420 | 14-700 |
| Shipping weight (kg) | 4.5 | 6.0 | 7.5 |
| Length weight (mm) | 540*225*195 | 785*225*195 | 940*225*195 |

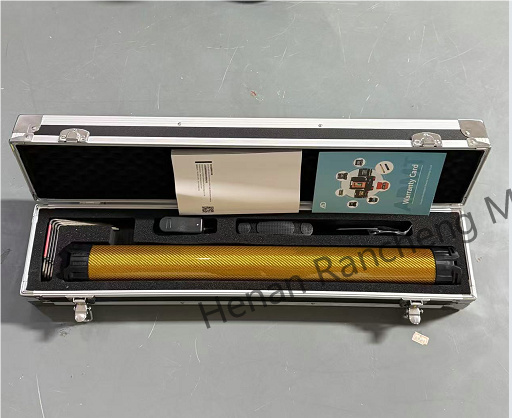

Equipment configuration:
Host, cable, electrode rod, packaging box, charger and other accessories.
Main functions:
Automatic imaging: Equipped with a 7-inch Android touch screen, it generates 2D, 3D and curved images in real time to intuitively present geological structures.
Accurate and stable: After more than 40 years of iterative upgrades, the equipment has high measurement accuracy and stable and reliable performance.
Three-screen intercommunication: Supports data intercommunication between instrument screen, mobile phone screen and computer screen, which is convenient for multi-terminal operation and analysis.
Intelligent and flexible: Supports switching between MN electrode and TT probe measurement modes, with optional wireless probes or water-finding gold belts to meet a variety of exploration needs.
Product advantages:
Intelligent operation: Combining cloud technology and AI analysis to improve data processing efficiency and accuracy.
Multi-functional adaptation: Flexible switching of measurement modes to meet different geological conditions and user needs.
Efficient and convenient: Real-time imaging and multi-screen intercommunication functions significantly improve work efficiency and user experience.
Application
Water finder is mainly used to find water and accurately locate information such as groundwater location, depth and flow direction.
